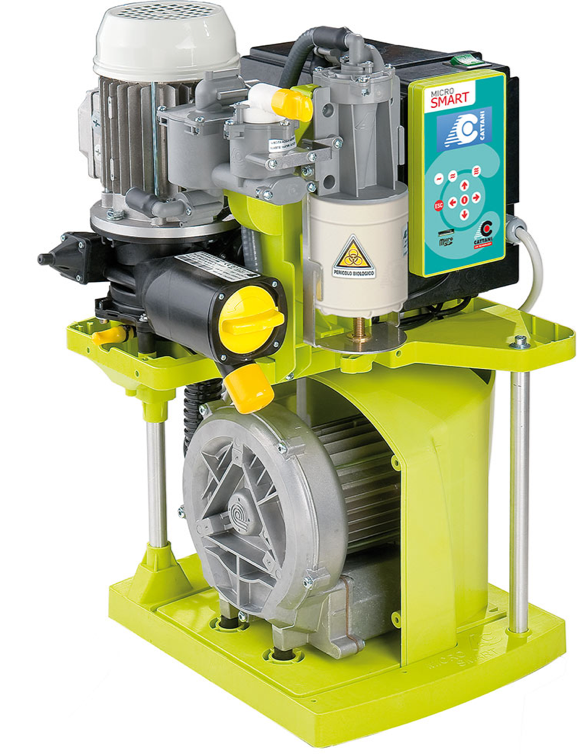

Designed for single surgery use, the compact Smart suction system combines unique, multi-level power and automatic speed control with the most effective cyclone amalgam separator available optional There are 3 programs to choose from: Low volume for orthodontics, High volume for conservation procedures, and High power for oral surgery and implantology. Patented, advanced technology and a remote use keypad enable you to instantly control vacuum and airflow levels, at the touch of a button, from almost anywhere in your surgery. Optimising control can halve the machine’s power usage, significantly reducing running costs and noise, without affecting performance. Supplied pre-wired, pre-programmed and completely assembled, with additional benefits that reduce maintenance time, ‘Smart’ is easy to use and extremely reliable. If you require a smarter suction solution, please contact us for more information on this intelligent machine. Micro Smart Technical Specification • No. of Surgeries: 1 surgery • Output power: 1.12kW – 6.3A 230v 50Hz • Max. flow: 916 l/min • Max. vacuum level: 210mbar (continuous service) • Noise level: 64-71dB(A) • Dimensions: W380 D350 H600 (mm) • Net Weight: 22Kg • Gross Weight: 37Kg

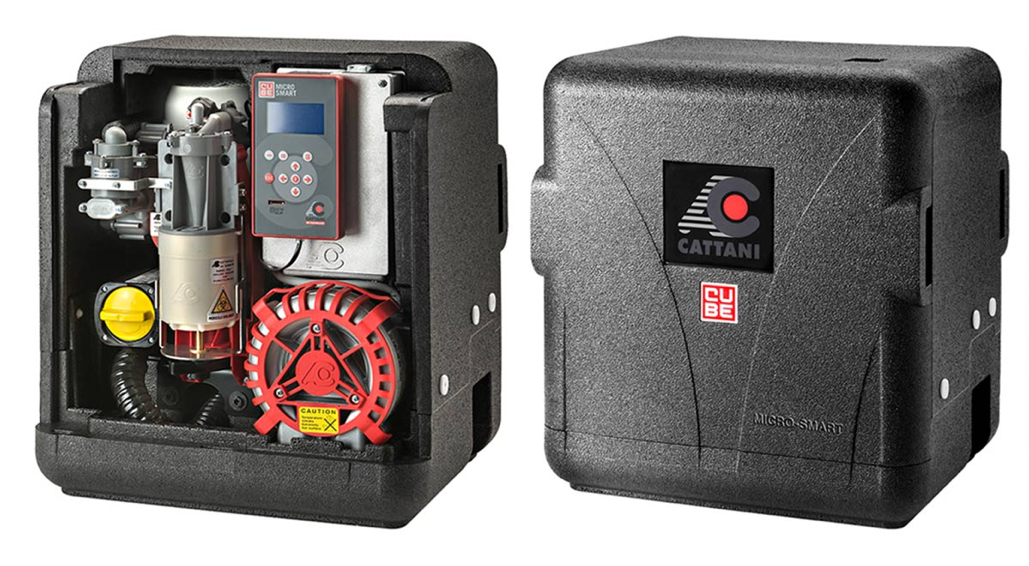

Our single surgery Micro Smart CUBE suction system is energy efficient and allow the user more flexibility for installation. These systems are smaller, quieter but do not compromise on power and performance all thanks to our new innovative technology. These systems are incredibly reliable: in the event of a functional problem, the active self-protection feature electronically adjusts the unit’s operation, resolving the problem without damaging the machine. These systems can connect wirelessly enabling professionals to check and adjust suction without leaving the surgery. CUBE systems are supplied with a one year warranty* (subject to Terms & Conditions of servicing schedule). Micro Smart Cube Technical Specification • No. of Surgeries: 1 surgery • Absorbed power: 0.9kW – 3.9A 230v 50Hz • Max. flow: 916 l/min • Max. vacuum level: 210mbar (continuous service) • Noise level: 59dB(A) • Dimensions: W430 D365 H465 (mm) • Net Weight: 23Kg • Gross Weight: 38Kg

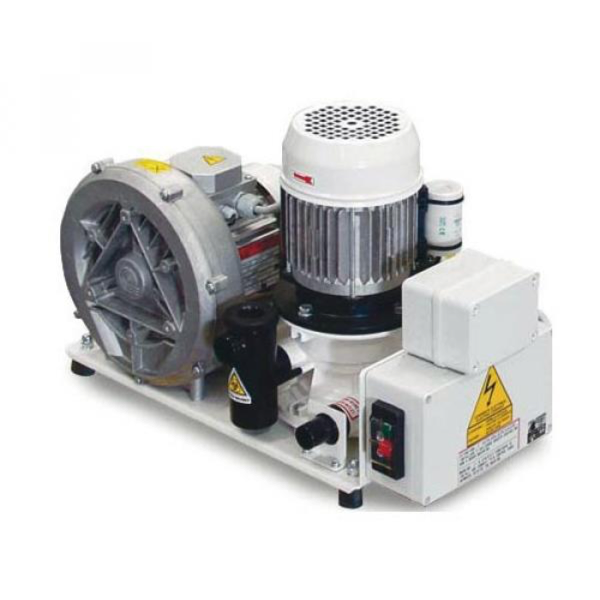

Turbo Jet is a range of motors designed with centrifugal draining pump. They are designed for single surgery semi-wet systems . These motors are protected with a thermal device All Turbo Jet units have a 12 month guarantee. Turbo Jet 1 Technical Specification • No. of Surgeries: 1 surgery • Output power: 0.42kW – 4A 230v 50Hz • Max. flow: 650 l/min • Max. vacuum level: 130mbar (continuous service) • Noise level: 61dB(A) • Dimensions: W450 D440 H400 (mm) • Net Weight: 30Kg • Gross Weight: 33Kg This unit is also available with amalgam separation (option)

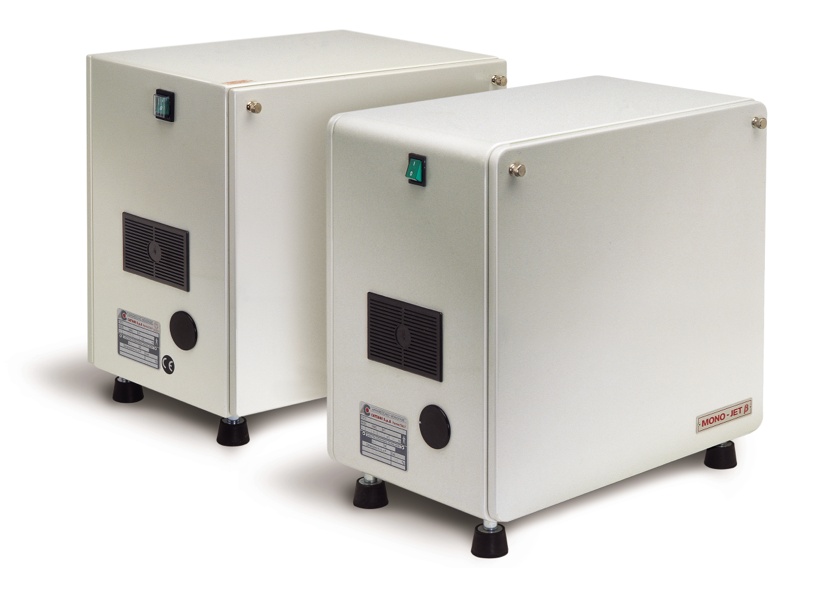

Mono jet Technical Specification • No. of Surgeries: 1 surgery • Output power: 0.42kW – 4A 230v 50Hz • Max. flow: 650 l/min • Max. vacuum level: 130 mbar • Water separator • Noise level: 59dB(A) • Dimensions: W28 D52 H44 (mm) • Net Weight: 27Kg This unit is also available with amalgam separation (option)

Turbo Smart is a powerful, variable speed suction system, with high airflow, for use by up to four surgeries simultaneously. It monitors the vacuum level and automatically responds to any change in use from the surgeries. When a suction tip is opened, Turbo Smart speeds up to meet the extra demand. When a suction tip is closed, it slows down. The system adapts its speed to cope with extra demand and when other surgeries are using the unit. The result is efficient and more consistent suction. One central separator negates the need for individual separator tanks in each surgery, thereby reducing costs, maintenance and cleaning. This patented, innovative and intelligent system has a multi-function digital display that supplies information on vacuum level, temperature, and servicing, . All Turbo Smart suction systems come complete with silencer and installation kit, all Turbo Smart systems have a one year warranty* (*subject to Terms and Conditions of servicing schedule). Turbo Smart Technical Specification • No. of Surgeries: 2 surgeries for turbo smart A • No. of Surgeries: 4 surgeries for turbo smart B • Output power: 1.22kW – 7A 230v 50Hz • Max. flow: 1400 l/min • Max. vacuum level: 210mbar (continuous service) • Noise level: 68.2dB(A) • Dimensions: W400 D335 H650 (mm) • Net Weight: 36Kg • Gross Weight: 45Kg

Turbo-Smart 2V is the first direct replacement for any wet-ring system, suitable for up to 6 surgeries producing 270mbar negative pressure and capable of running continuously, (adequate cooling required) +5˚C – +40˚C. Turbo Smart comes with built-in amalgam separation.(option) Existing pipework will not need replacing. By reducing the negative pressure to 210mbar with suitable diameter pipework, this system is capable of running up to 6 surgeries. Turbo-Smart 2V will operate from a 230V 13A supply. Turbo Smart 2V systems have a one year warranty* (*subject to Terms and Conditions of servicing schedule). Turbo Smart 2V Technical Specification • No. of Surgeries: 6 surgeries (4 running simultaneously) • Output power: 1.5kW – 9A 230v 50Hz • Max. flow: 1700 l/min • Max. vacuum level: 275mbar (continuous service) • Noise level: 69.8dB(A) • Dimensions: W423 D360 H650 (mm) • Net Weight: 41Kg • Gross Weight: 50Kg • Amalgam separator (option)

• No. of Surgeries: up to 12 surgeries (8 running simultaneously) • Output power: 3kW – 18A • Max. flow: 3600 l/min • Max. vacuum level: 275mbar (continuous service) • Noise level: 73dB(A) • Dimensions: W1240 D440 H760 (mm) not inc optional control panel and pipework • Net Weight: 140Kg (approx) not inc control panel • Amalgam separator (option )

• No. of Surgeries: up to 16 surgeries (12 running simultaneously) • Output power: 4.5kW – 27A • Max. flow: 3600 l/min • Max. vacuum level: 275mbar (continuous service) • Noise level: 78dB(A) • Dimensions: W1900 D440 H760 (mm) not inc optional control panel and pipework • Net Weight: 160Kg (approx) not inc control panel • Amalgam separator (option )

Our Aspi Jet range of mobile suction systems can be easily manoeuvred around the surgery from room to room or if necessary from practice to practice. They are simple to use, easy to maintain and all come with a 12 month manufacturer’s warranty. These systems are ideal for main suction or as an emergency backup unit. Cattani Aspi Jet mobile suction systems have a stainless steel top cover and come complete with accessory pack to get you started. These suction motors are protected with a thermal device and a canister level control for motor protection.

A fully portable suction unit, with an internal waste collection canister (requires emptying manually). Aspi Jet 6 Technical Specification • No. of Surgeries: 1 surgery • Output power: 0.4kW – 3.1A 230v 50Hz • Max. flow: 400 l/min (at 16mm tip) • Max. vacuum level: 140mbar • Noise level: 65dB(A) • Dimensions: W500 D350 H760 (mm) • Net weight: 32Kg • Gross weight: 41Kg

With automatic drainage: when aspirated liquid reaches maximum level, after prolonged use, a draining pump empties the canister in three seconds. Aspi Jet 7 Technical Specification • Product Code: 010021 • No. of Surgeries: 1 surgery • Output power: 0.4kW – 3.1A 230v 50Hz • Max. flow: 400 l/min (at 16mm tip) • Max. vacuum level: 140mbar • Noise level: 65dB(A) • Dimensions: W500 D350 H760 (mm) • Net weight: 34Kg • Gross weight: 43Kg

Combines the features of Aspi Jet 7 with the addition of a tumbler support and cold water filler. Aspi Jet 8 Technical Specification • Product Code: 010031 • No. of Surgeries: 1 surgery • Output power: 0.4kW – 3.1A 230v 50Hz • Max. flow: 400 l/min (at 16mm tip) • Max. vacuum level: 140mbar • Noise level: 65dB(A) • Dimensions: W500 D350 H760 (mm) • Net weight: 36Kg • Gross weight: 47Kg

Comes with a complete water system: tumbler support, cold water filler and cuspidor mounted on a cantilever arm. Aspi Jet 9 Technical Specification • Product Code: 010041 • No. of Surgeries: 1 surgery • Output power: 0.4kW – 3.1A 230v 50Hz • Max. flow: 400 l/min (at 16mm tip) • Max. vacuum level: 140mbar • Noise level: 65dB(A) • Dimensions: W475 D560 H760 (mm) • Net weight: 39Kg • Gross weight: 50Kg

Cattani provides vacuum solutions for hospitals, large health centres, university faculties and teaching facilities. We supply both off-the-shelf products and bespoke systems, for optimum reliability and simplistic maintenance, to the largest establishments with over 200 dental units. All hospital suction systems are compliant with the necessary National Hospital Technical Memorandums.
